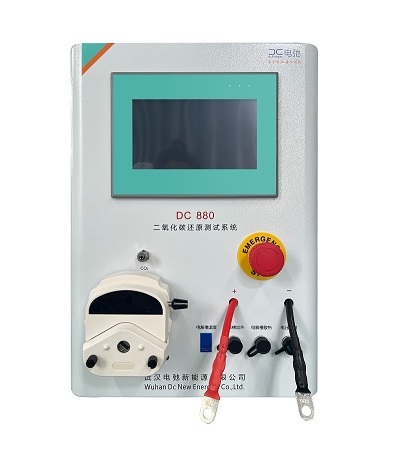

DC 880 pro Carbon Dioxide Reduction Test System
Carbon Dioxide Reduction Test System
Model
DC 880 B DC 880 Pro
Voltage Range
0‑6 V 0‑6 V
Current Range
0‑10 A 0‑10 A
Electrolysis Power
60 W 60 W
Liquid Flow Control Range
0‑100 mL/min 0‑100 mL/min, Pressure resistance: 10 MPa
Gas Flow Control Range
0‑100 sccm 0‑100 sccm, Pressure resistance: 10 MPa
Automatic Back‑Pressure Control Range
0.3 MPa 0‑5 MPa
Dew‑point Temperature Control
RT+5 ℃ ~ 90 ℃ RT+5 ℃ ~ 90 ℃
Gas Humidity Control
0‑100 %RH 0‑100 %RH
Application Features
Supports high‑pressure carbon‑dioxide reduction reaction; compatible with multiple types of electrolytic cells;Flow and pressure control for gas‑liquid two‑phase fluids is available.
Dimensions
450(W)×600(D)×670(H) mm 500(W)×480(D)×590(H) mm
Weight
＜50 kg ＜70 kg
